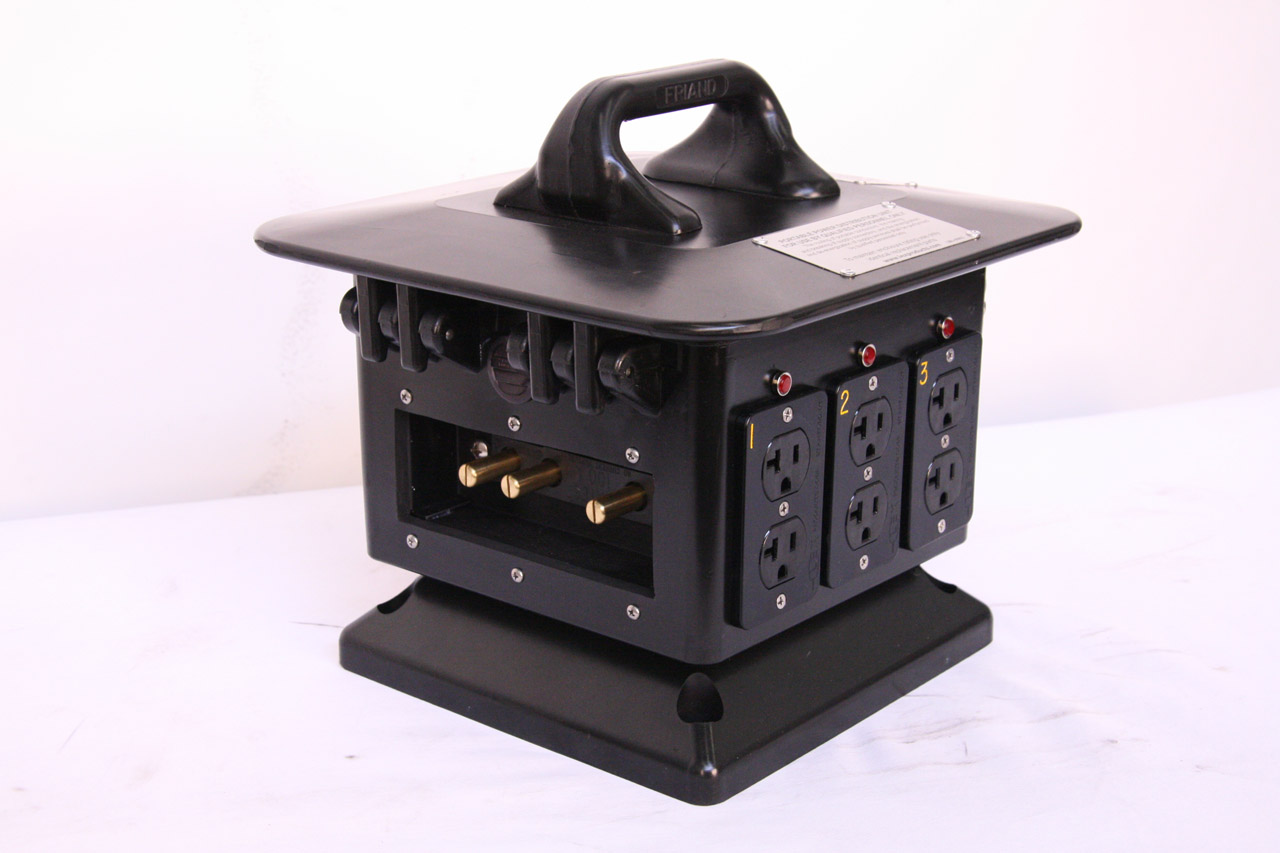

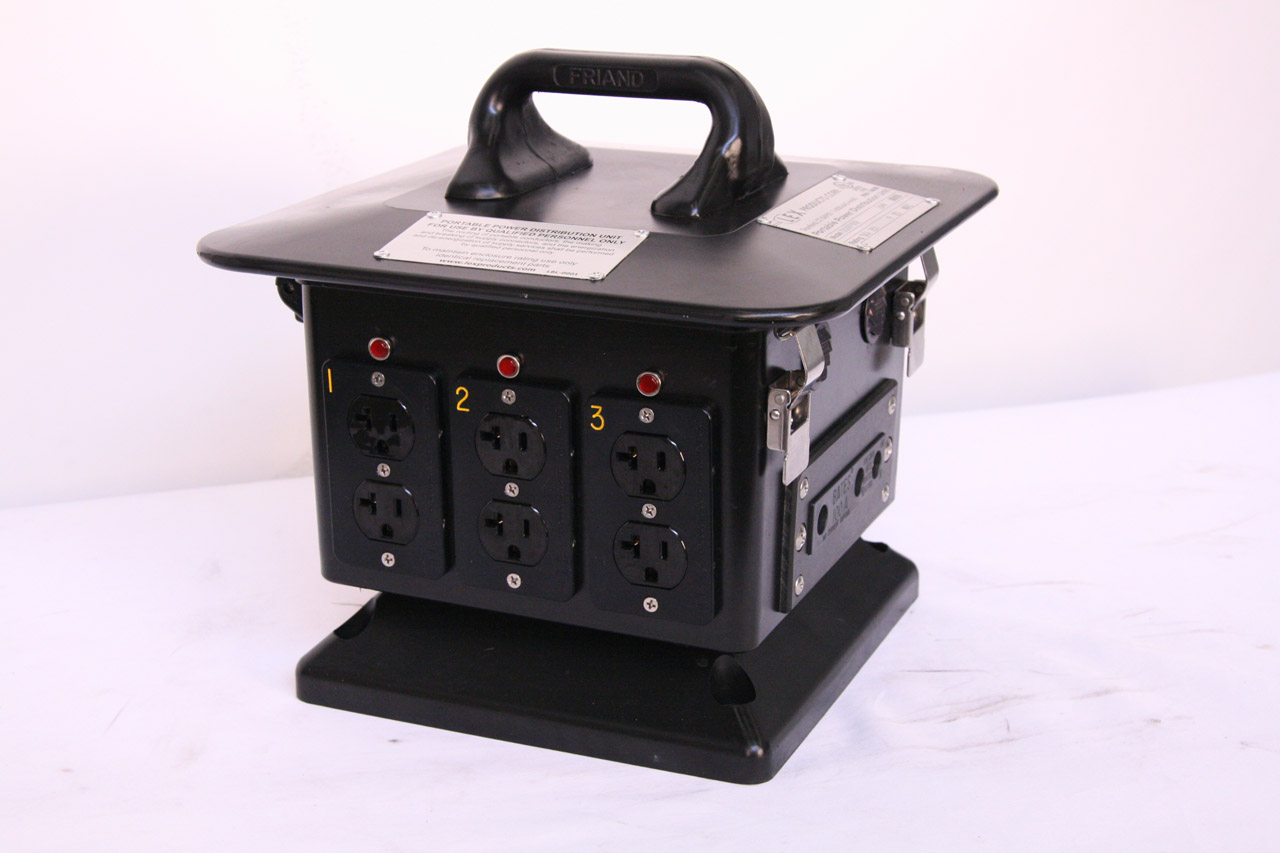

100A 125 VAC, (1) 100 Amp Stage Pin (Bates) Male (Inlet) to (5) NEMA 5-20 (Edison) Receptacles, Feed Thru, Pagoda Jr.
| Part Number | DBS100FP-B4B2 |
|---|---|
| Markets | Entertainment |
| Rating | Indoor |
| Enclosure | Box |
| Input | Stage Pin |
| Output | NEMA |
| Amperage | 100A |
| Certifications |  |
| Data Sheet | Print / Save As |
- This box is fed from a larger power distribution box and provides power from a stage pin inlet to NEMA 5-20 duplex receptacles for smaller lights and related equipment
- The feed thru feature allows multiple boxes to be placed along the same feed.Heavy-duty molded rubber enclosure is fully insulated and resistant to shock, impact and corrosion

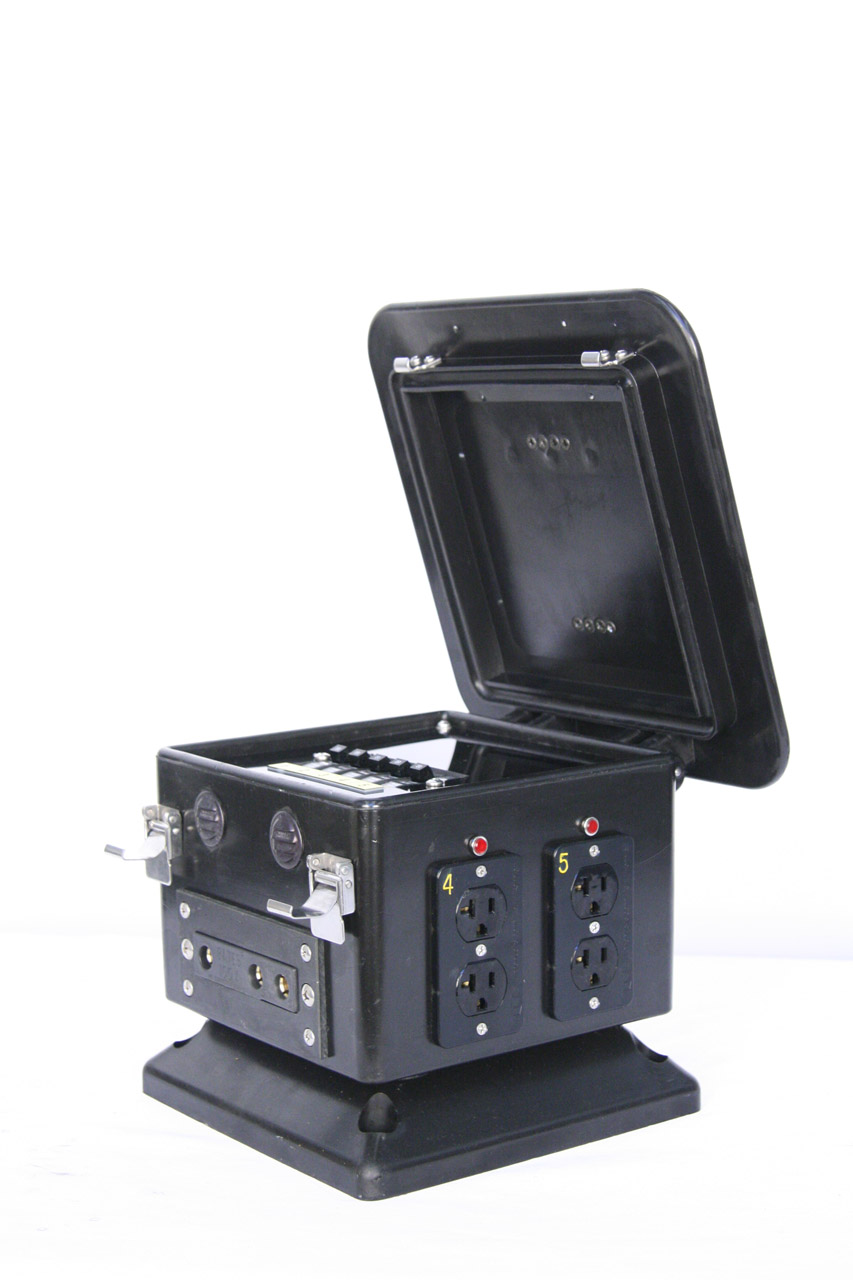

- Circuit breakers mounted under hinged lid for enhanced protection
- Stackable and compact for easy storage and convenient portability
- Elevated base keeps receptacles above ground level
Markets Served
Motion Picture and Television Production
| Rating: | 100 Amp, Single Phase (H,N,G), 2-Pole, 3-Wire, 120/208Y VAC |
|---|---|
| Environmental Rating: | NEMA Type 1 (Indoor Use) |
| Input: | (1) 100 Amp Stage Pin (Bates), 100 Amp, 2-Pole, 3-Wire, 125 VAC inlet, panel mount |
| Feed Thru: | Yes |
| Main Breaker: | None |
| Output: | (5) NEMA 5-20, 20 Amp, 2-Pole, 3-Wire, 125 VAC, duplex receptacles, panel mount |
| Overcurrent Protection: | (5) 20 Amp, 120 VAC, single pole, hydraulic magnetic, branch-rated circuit breakers |
| Enclosure Type: | Pagoda Jr. |
| Dimensions: | 11.38"L x 11.38"W x 11.32"H |
| Weight: | 16.0 lbs |
| Agency Approval: | cULus Listed |
