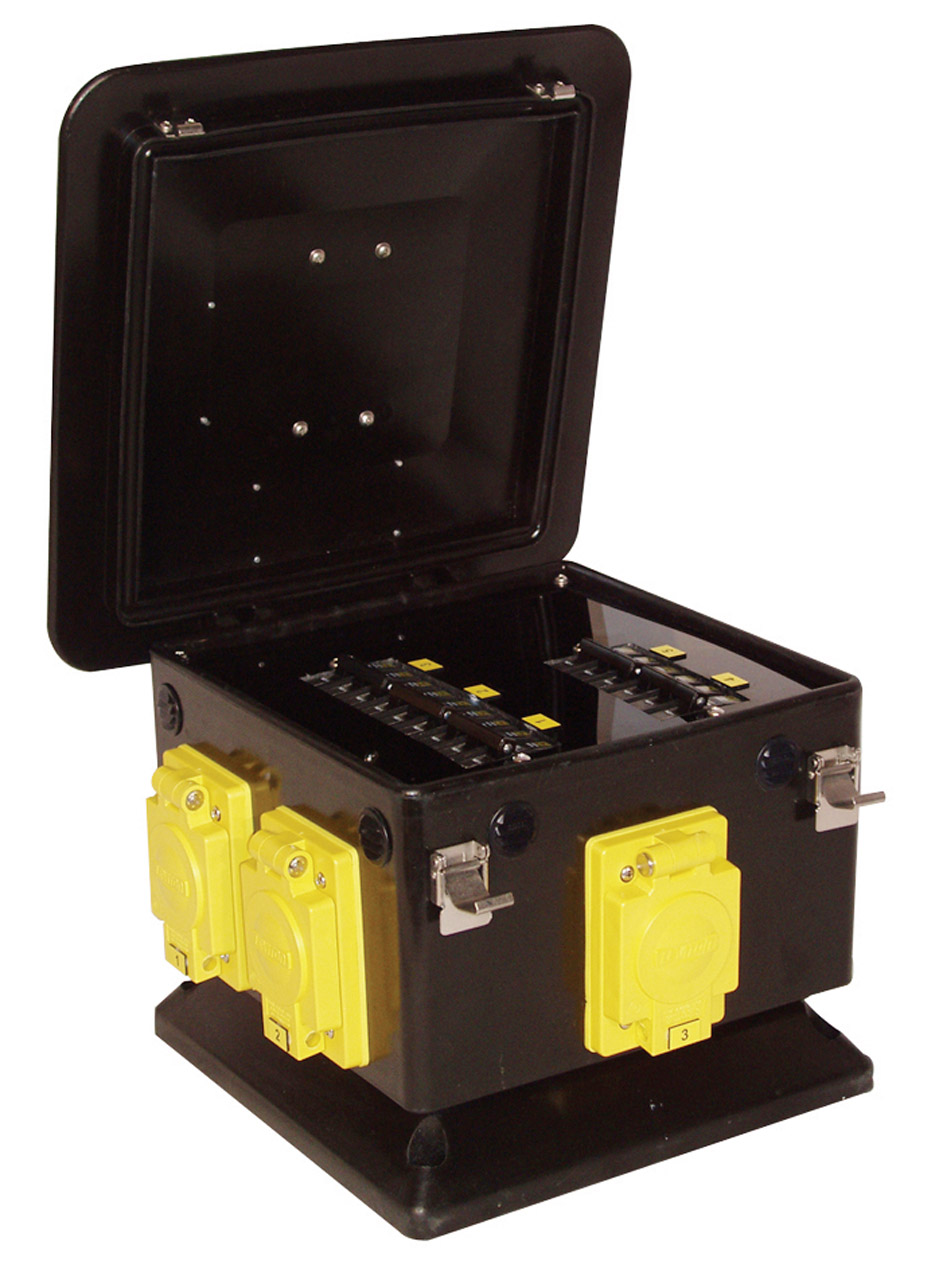

100A 120/208 VAC, (1) Set of (5) 16 Series Cam-type, Single Pole Males (Inlets) to (5) NEMA L21-20 Locking Receptacles (Outlets), Pagoda™
| Part Number | DB100NP-AFF-S3 |
|---|---|
| Markets | Entertainment Industrial |
| Rating | Outdoor |
| Enclosure | Box |
| Input | Cams |
| Output | NEMA |
| Amperage | 100A |
| Certifications |  |
| Data Sheet | Print / Save As |
- This box may be powered from a generator, a panel or a larger distribution box
- This distribution box can be used at outdoor events to provide 20 Amp, 3-phase locking receptacle power
- The locking receptacles help ensure positive connection and prevent disconnecting under load
- The receptacles can be used to power lights, effects and audio equipment
- Heavy duty molded rubber enclosure is fully insulated and resistant to shock, impact and corrosion
- Circuit breakers are mounted under hinged lid for enhanced safety
- Stackable and compact for easy storage and portability
- Elevated base keeps receptacles above ground level
Markets Served
Live Events, Convention Centers, Industrial
| Rating: | 100 Amp, Three-phase (H,H,H,N,G), 4-pole, 5-wire, 120/208Y VAC, 60 Hz |
|---|---|
| Environmental Rating: | NEMA 3R (Weather Resistant) |
| Input: | (1) set of (5) 16 Series Cam-type, 400 Amp, single pole, 600V, color-coded inlets, cover doors, panel mount |
| Feed Thru: | None |
| Main Breaker: | None |
| Output: | (5) NEMA L21-20 , 20 Amp, 4-pole, 5-wire, 120/208Y VAC, locking receptacles, cover doors, panel mount |
| Overcurrent Protection: | (5) 20 Amp, 120/208Y VAC, triple-pole, hydraulic magnetic, branch-rated circuit breakers |
| Enclosure Type: | Pagoda™ |
| Dimensions: | 14.25"L x 14.25"W x 14.15"H |
| Weight: | 32.0 lbs |
| Agency Approval: | cULus Listed |
