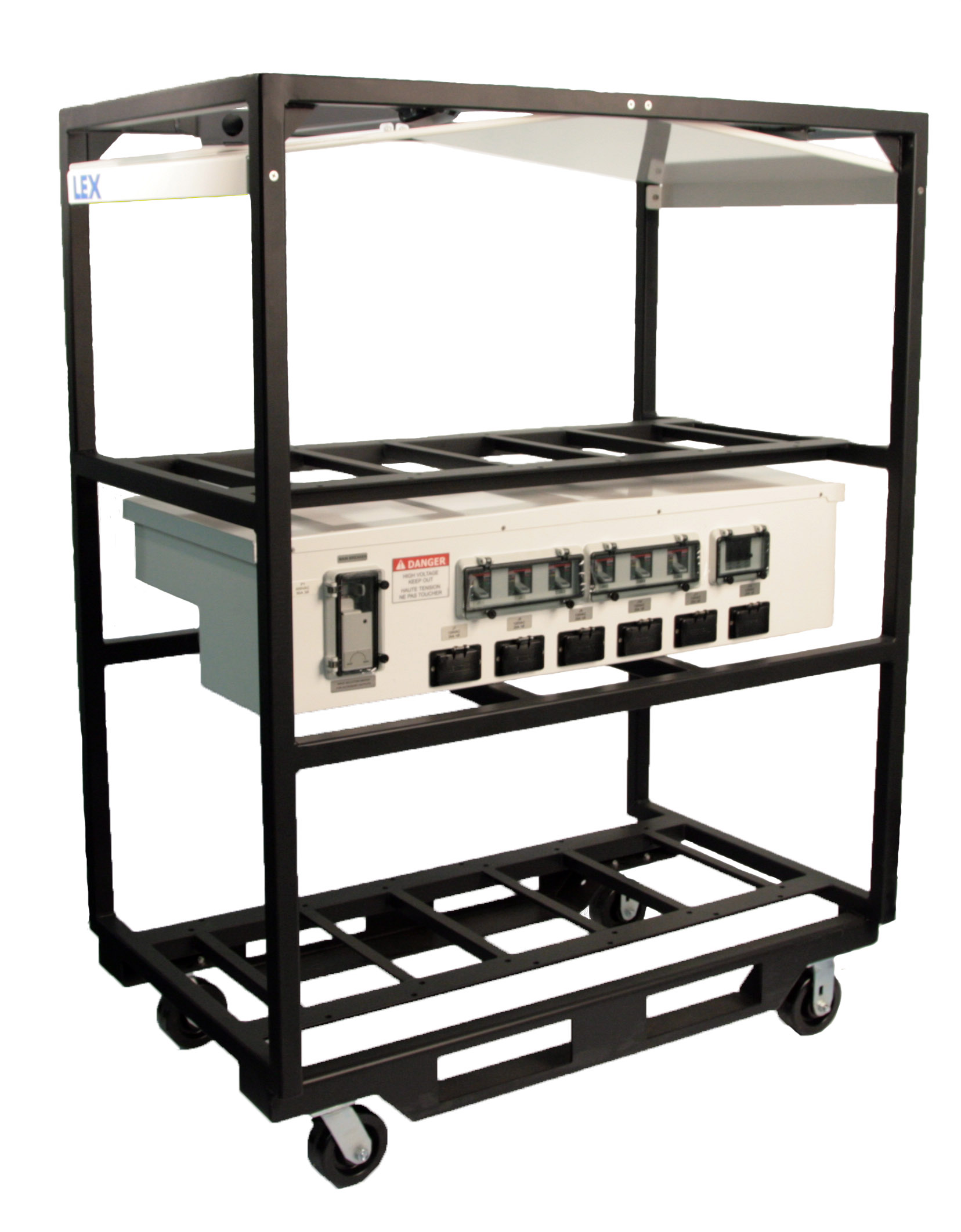

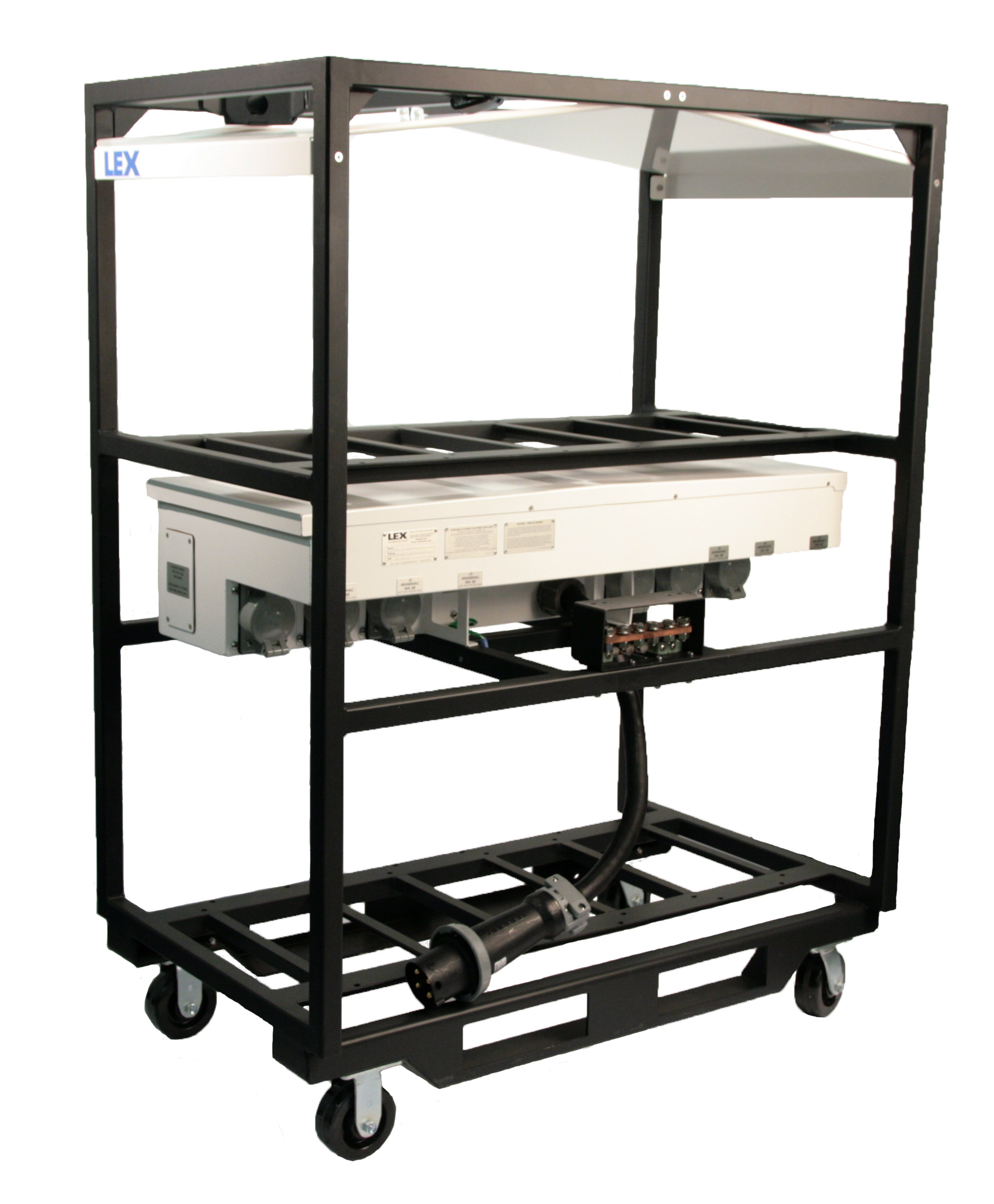

80A 600Y/480 VAC, PRIMARY, (1) 100A 600 VAC Pin and Sleeve Male (Inlet) to (6) NEMA 60A Arktite Locking Receptacles; 208Y/120VAC, SECONDARY, (6) NEMA 5-20 (Edison) GFCI Straight Blade Receptacles (Outlets), Welding Rack
| Part Number | WR6A-7SM-FG26FW6LD-R |
|---|---|
| Markets | Industrial |
| Rating | Outdoor |
| Enclosure | Rack |
| Input | Pin & Sleeve |
| Output | NEMA Arktite |
| Amperage | 80A |
| Certifications |  |
| Data Sheet | Print / Save As |
- Provides portability and power distribution for welding packs in a convenient platform
- Meets stringent UL 1640 and CSA-C22.2 No. 14 Standards for Type 3R Outdoor Use
- Supports up to (6) industry-standard welders in power rack distribution center
- Safety Interlock System adjusts from 480/600 VAC to 120 VAC for tool power
- On board outlets provide power for welding packs while convenience receptacles provide power for additional demands
- Robust heavy gauge welded steel frame designed for construction environments
- Heavy gauge sheet metal roof protects equipment
- Slim design provides maneuverability in tight spaces
Markets Served
Shipbuilding, Factory shutdowns, Generator Rental, Construction, Maintenance & Repair and Fabrication
| Rating: | 80 Amp, 600/480Y VAC Primary to 120/208Y VAC Secondary, 10kVA |
|---|---|
| Environmental Rating: | NEMA Type 3R (Weather Resistant) |
| Input: | (1) HBL4100P5W, 100 Amp, 3-pole, 4-wire, 600 VAC, pin and sleeve locking plug on a 2.0' pigtail |
| Feed Thru: | None |
| Main Breaker: | (1) 80 Amp, 600/480Y VAC, triple-pole, hydraulic magnetic, branch-rated circuit breaker |
| Output: | (6) AR642 (Arktite), 60 Amp, 3-pole, 4-wire, 600 VAC, locking receptacle, cover doors, panel mount; (6) NEMA 5-20 GFCI, 20 Amp, 2-pole, 3-wire, 125 VAC, straight blade duplex receptacles, cover doors, panel mount, paralleled |
| Overcurrent Protection: | (1) 15 Amp, 600 VAC, triple-pole, thermal magnetic, branch-rated circuit breaker (transformer); (6) 30 Amp, 120/208 VAC, three-pole, hydraulic magnetic, branch-rated circuit breakers (HBL3769); (3) 20 Amp, 125 VAC, single-pole, hydraulic magnetic, branch-rated circuit breakers |
| Enclosure Type: | Welding Rack |
| Dimensions: | 63" H x49"D x 30"D |
| Weight: | 495.0lbs |
| Agency Approval: | cETLus Listed |
