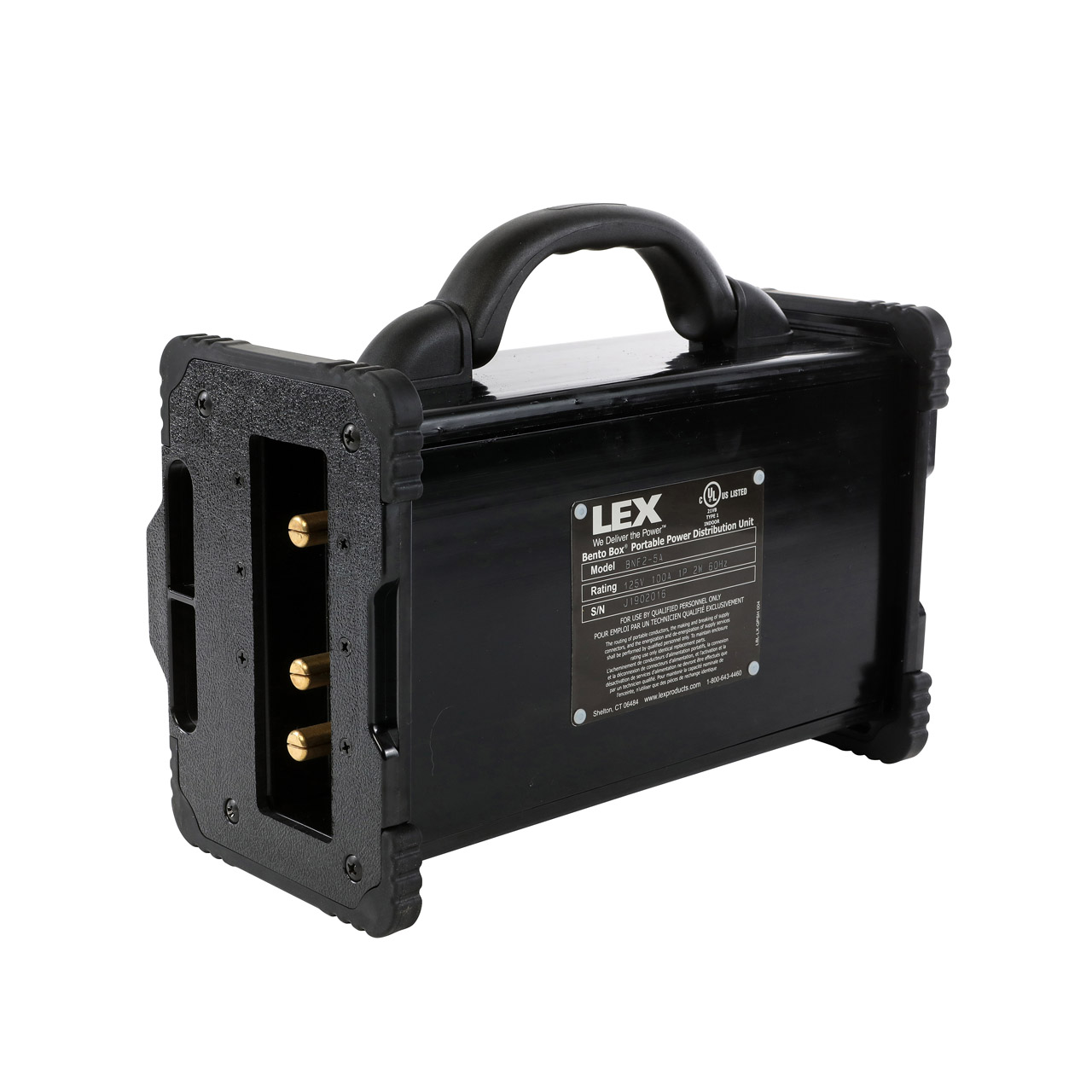

100A 125 VAC, (1) 100A 125 VAC Stage Pin (Bates) Male (Inlet) to (5) NEMA 5-20 (Edison) Straight Blade Receptacles (Outlets), Feed Thru, Bento™
| Part Number | BNF2-5A |
|---|---|
| Markets | Entertainment |
| Rating | Indoor |
| Enclosure | Box |
| Input | Stage Pin |
| Output | NEMA |
| Amperage | 100A |
| Certifications |  |
| Data Sheet | Print / Save As |
- Fed from larger power sources, this compact distribution unit provides 20 Amp duplex receptacles for smaller lights and related equipment
- The feed thru feature allows multiple boxes to be placed along the same feed
- Hydraulic magnetic circuit breakers help prevent nuisance tripping at higher temperatures
- Optional bracket and threaded insert available that enables easy mounting vertically or horizontally with C-clamp
- Fit six in a standard six-gallon milk crate for ease of transport
- Stackable and compact for easy storage and convenient portability
- Heavy-duty extruded engineered thermoplastic enclosure is electrically insulated and resistant to shock, impact and corrosion
- Circuit breakers are mounted flush for easy access and numbered for easy circuit identification
- Collapsible handle and end plate grips for easy handling in tight spaces
Markets Served
Motion Picture and Television Production
| Rating: | 100 Amp, Single-phase (H,N,G), 2-pole, 3-wire, 125 VAC, 60 Hz |
|---|---|
| Environmental Rating: | NEMA Type 1 (Indoor Use) |
| Input: | (1) Stage Pin (Bates), 100 Amp, 2-pole, 3-wire, 125 VAC inlet, panel mount |
| Feed Thru: | Yes |
| Main Breaker: | None |
| Output: | (3) NEMA 5-20 (Edison), 20 Amp, 2-pole, 3-wire, 125 VAC, straight blade duplex receptacles, panel mount |
| Overcurrent Protection: | 20 Amp, 125 VAC, single-pole, hydraulic magnetic, branch-rated circuit breakers |
| Enclosure Type: | Bento™ |
| Dimensions: | 11.50"L x 5.90"W x 7.60"H |
| Weight: | 7.5 lbs |
| Agency Approval: | cULus Listed |
