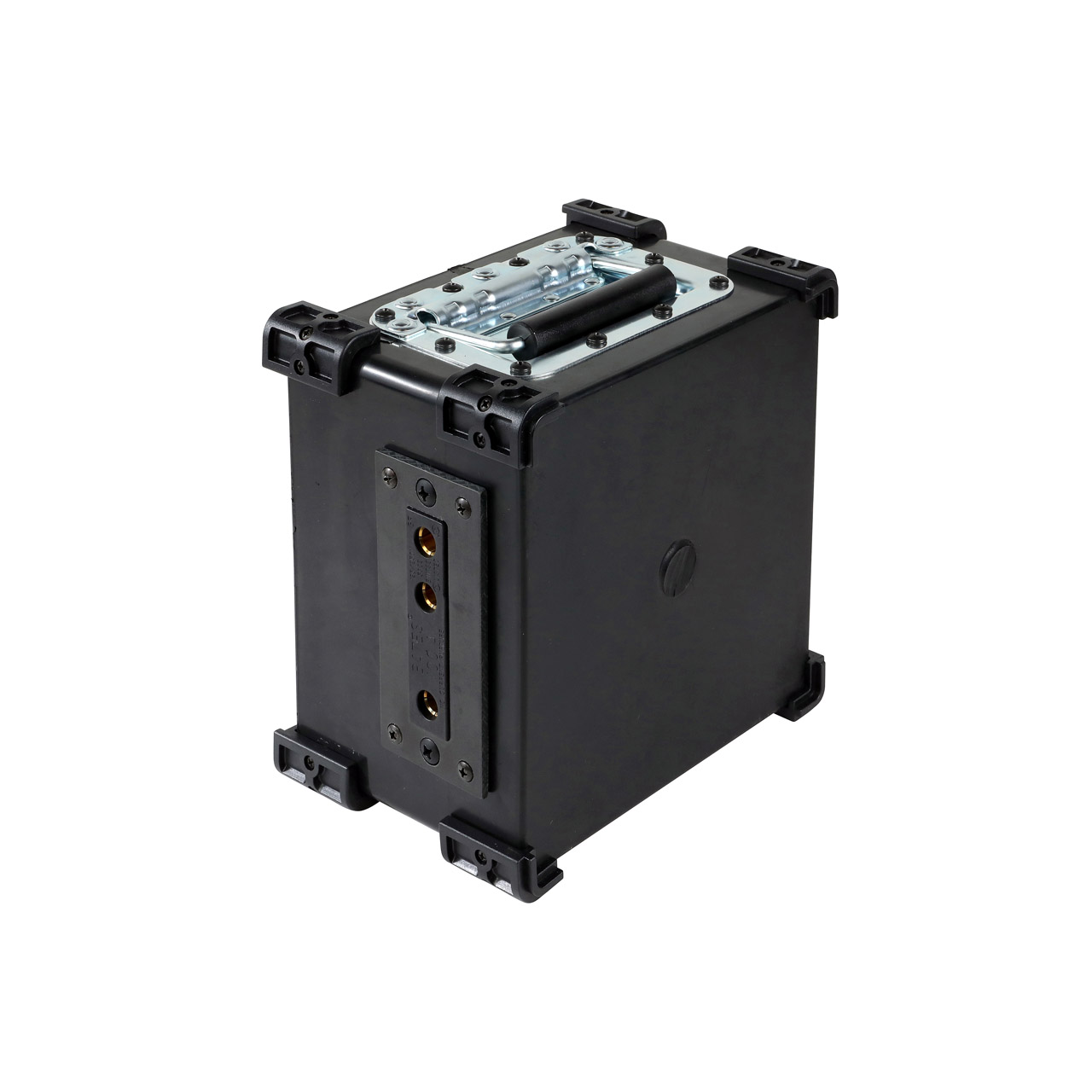

100A 125 VAC, (1) 100A Stage Pin (Bates) Male Inlet to (5) NEMA 5-20 (Edison) Receptacles, Feed Thru, CineBox
| Part Number | PH100B1-NDC-15CC |
|---|---|
| Markets | Entertainment |
| Rating | Indoor |
| Enclosure | Box |
| Input | Stage Pin |
| Output | NEMA |
| Amperage | 100A |
| Certifications |  |
| Data Sheet | Print / Save As |
- Fed from larger power sources, this compact power distribution unit provides 5-20 duplex receptacles for smaller lights and related equipment.
- The feed thru feature allows multiple boxes on the same feed.
- Heavy-duty rubber enclosure is non-conductive and resistant to shock, impact and corrosion
- Durable lexan bumpers allow units to stack for easy storage and protects enclosure
- Collapsible handles provide easy handling in tight spaces and allow carrying multiple units
- Hydraulic magnetic circuit breakers help prevent nuisance tripping at high temperatures
- Flush mounting circuit breakers protect handles from impact while providing easy access
- Extra heavy-duty industrial grade receptacles are designed and manufactured to withstand harsh conditions
- Bright, color coded receptacles easily identify the box rating and increase visibility in low-light situations
- Optional threaded insert on the back provides easy mounting with C-clamp
Markets Served
Theatrical, Motion Picture, Television Production
| Rating: | 100 Amp, Single Phase, 2 Pole, 3 Wire (H,N,G), 125 VAC, 60 Hz |
|---|---|
| Environmental Rating: | NEMA Type 1 (Indoor Use) |
| Input: | (1) 100 Amp Stage Pin (Bates), 100 Amp, 2 Pole, 3 Wire, 125 VAC inlet, panel mount |
| Feed Thru: | Yes |
| Main Breaker: | None |
| Output: | (5) NEMA 5-20, 20 Amp, Single Phase, 2 Pole, 3 Wire, 120 VAC, duplex receptacles |
| Overcurrent Protection: | (5) 20 Amp hydraulic magnetic 100% branch-rated circuit breakers |
| Enclosure Type: | CineBox |
| Dimensions: | 9.0"W x 9.0"L x 6.38"D |
| Weight: | 11.0 lbs |
| Agency Approval: | cULus Listed |
